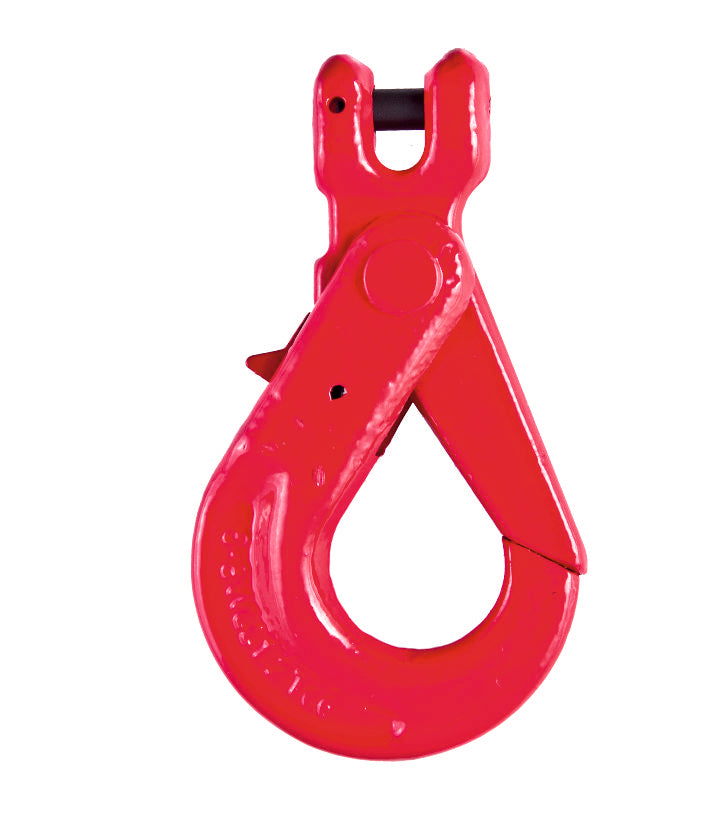

G80 Safety Hook – Fork Type

The G80 Safety Hook – Fork Type is a forged alloy steel self-locking hook, designed for use with Grade 80 chain slings. Manufactured from quenched and tempered Grade 80 steel, it is fully compliant with EN 1677-3 and CE marked for certified lifting operations.

The clevis (fork) design allows the hook to be connected directly to the chain without the need for additional coupling links, creating a compact and secure assembly. Its self-locking latch mechanism automatically engages when under load, preventing accidental release and ensuring maximum safety during lifting.

Every hook is individually proof-tested and permanently marked with working load limit (WLL), chain size, and traceability code. Finished in high-visibility red, this hook combines durability, safety, and ease of use.

Key Features:

• Material: Grade 80 alloy steel (quenched & tempered)

• Standard: EN 1677-3, CE marked

• Design: Fork (clevis) type – connects directly to chain

• Safety Feature: Automatic self-locking latch for secure lifting

• Finish: Powder-coated in safety red

• WLL Range: For chain sizes 6 mm to 32 mm

• Safety Factor: Minimum 4:1

• Markings: WLL, chain size, traceability code

Benefits:

• Direct clevis connection – no coupling links required

• Automatic self-locking system for maximum safety

• Strong, durable, and impact-resistant design

• Fully compliant and tested for heavy-duty lifting operations

Applications:
Ideal for construction, steel fabrication, shipyards, ports, mining, and heavy logistics, where safe and secure chain sling connections are essential.
