G80 Master Link Assembly - Chain

The G80 Master Link Assembly is a forged alloy steel lifting component designed for assembling 2-leg, 3-leg, and 4-leg chain sling systems. Manufactured from Grade 80 quenched and tempered steel, it meets the requirements of EN 1677-4 and is CE marked for full compliance with European lifting standards.

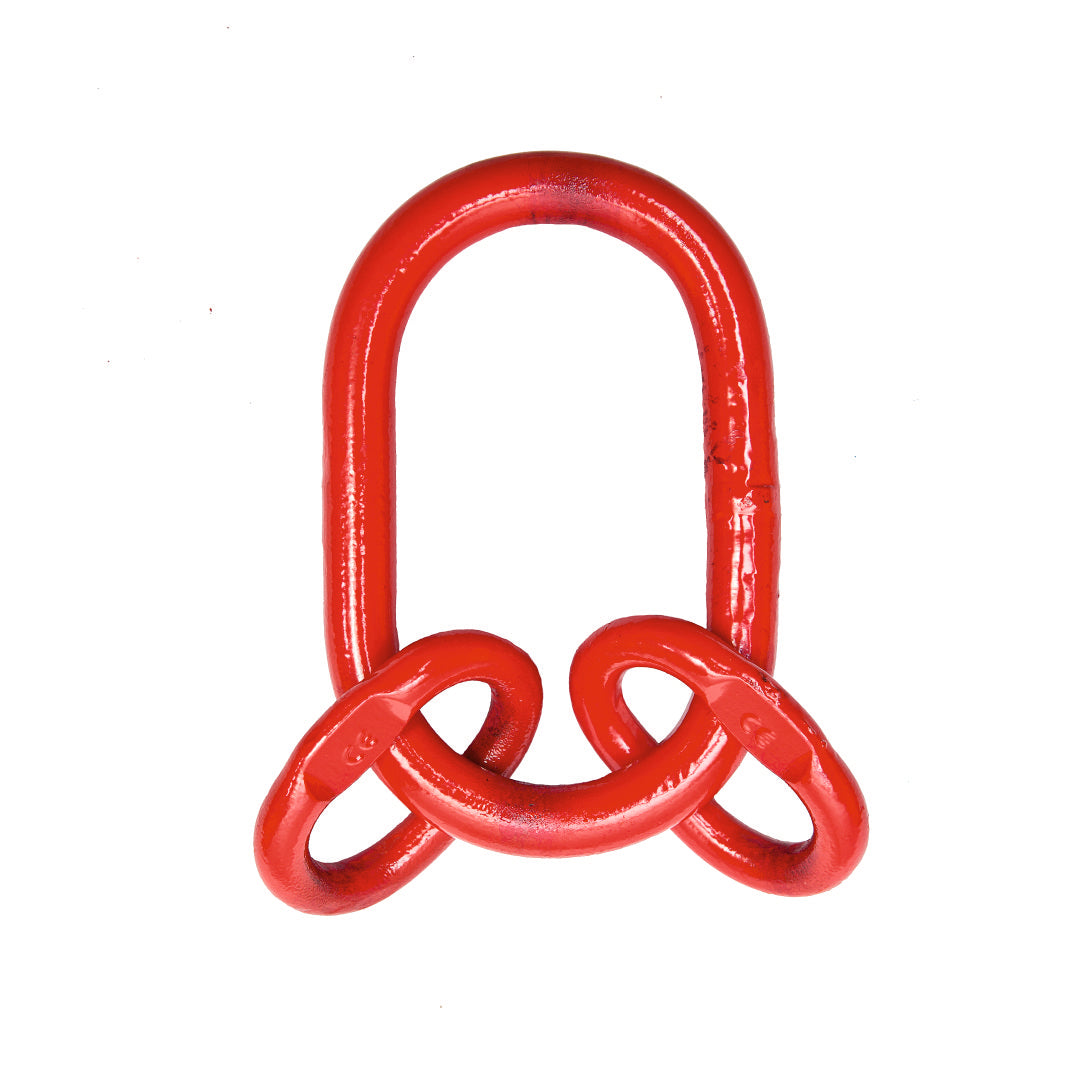

This assembly consists of one large master link and two intermediate sub-links, providing a safe and reliable connection between the lifting hook and multiple chain legs. The design allows excellent load distribution, making it ideal for multi-leg chain sling configurations.

Each assembly is proof-tested, with permanent identification markings for working load limit (WLL), chain size compatibility, and traceability. Finished with a durable powder-coated safety red paint, it offers high resistance to wear, impact, and corrosion.

Key Features:

• Material: Grade 80 alloy steel (quenched & tempered)

• Standard: EN 1677-4, CE marked

• Configuration: Large master link + 2 intermediate sub-links

• Finish: Powder-coated in safety red

• WLL Range: Available for chain sizes 6 mm to 32 mm

• Safety Factor: Minimum 4:1

• Markings: WLL, chain size, traceability code

Benefits:

• Safe and reliable connection point for multi-leg chain slings

• Distributes load evenly across sling legs

• High-strength alloy steel ensures long service life

• Fully compliant and tested for lifting safety

Applications:
Used as the top connection in 2-leg, 3-leg, and 4-leg chain sling assemblies, suitable for construction, shipyards, steel handling, ports, and heavy industrial lifting operations.
